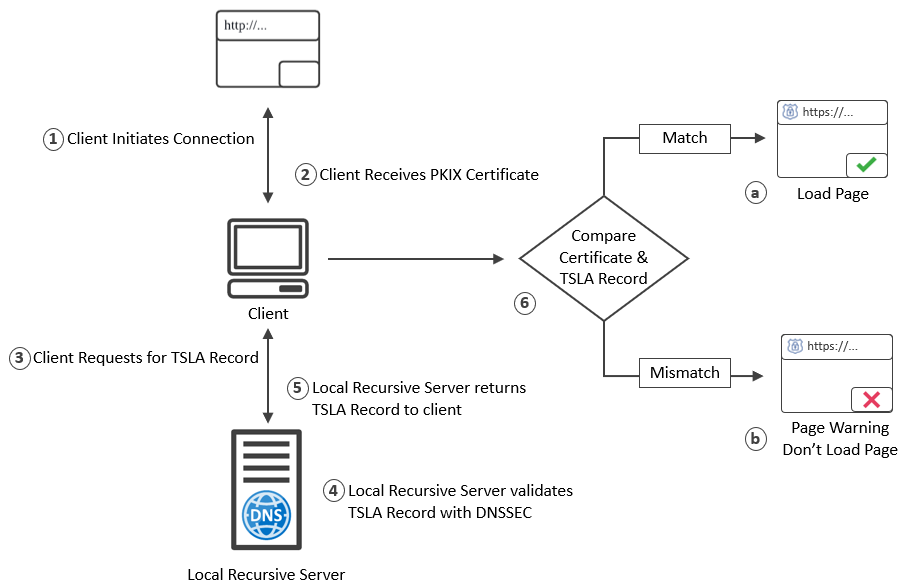

    • DANE
    • DANE Usage Scenarios

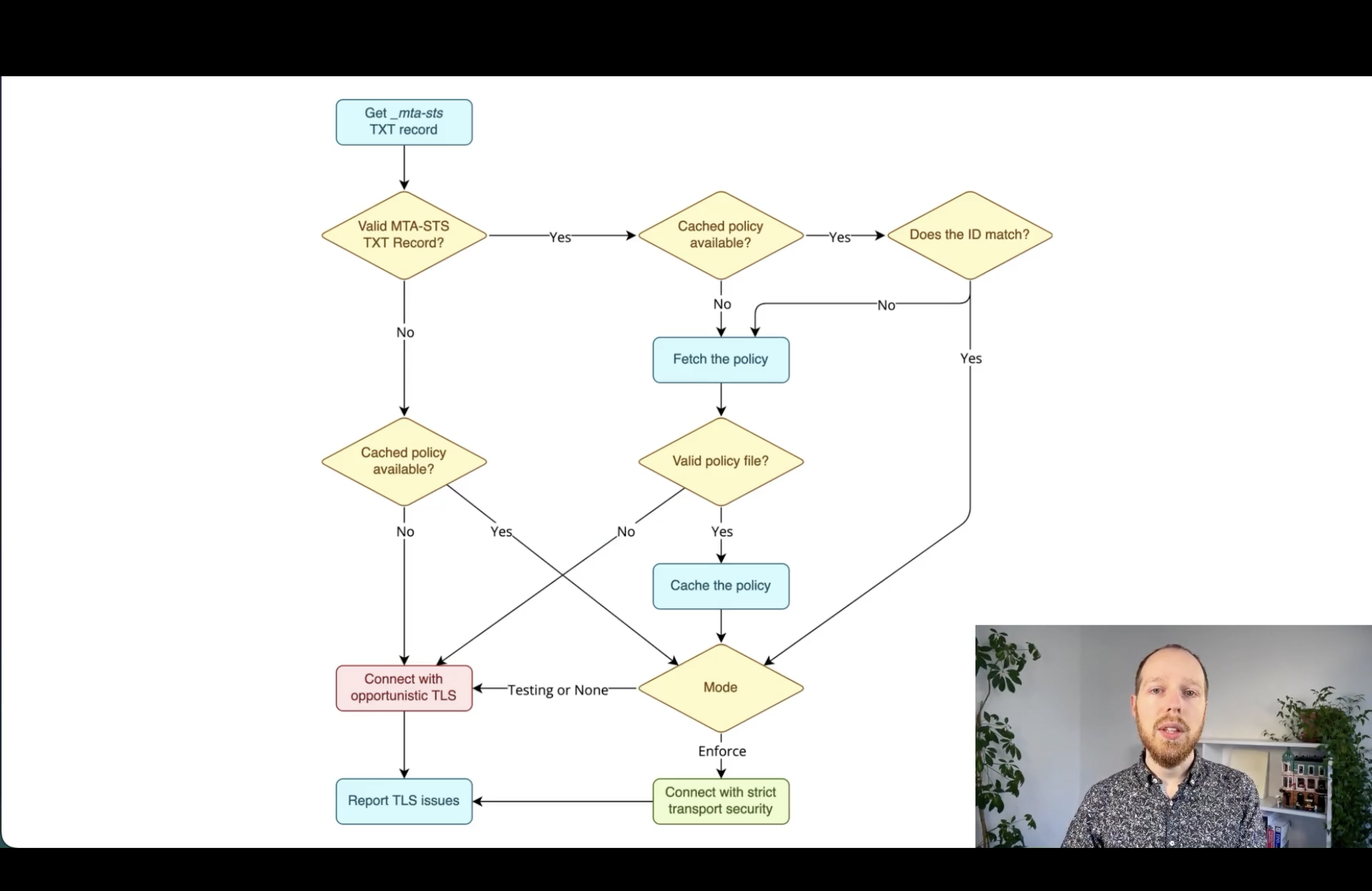

  • MTA-STS (Mail Transfer Agent Strict Transport Security)
    • Step 1: MTA-STS DNS TXT Record
    • Step 2: MTA-STS Policy File

Just jotting down some quick notes and learnings from the video course by Ruurtjan Pul from nslookup.io.

Design goals

Goals	Description	Design pattern
Multi-tenant	Useable by independent entities	Federation (allows multiple DB to function as one)
Fault-tolerant	No single point of failure	Replication
Scalable	Because the internet grows	Distributed
Performant	Slow responses lead to slow applications	Caching

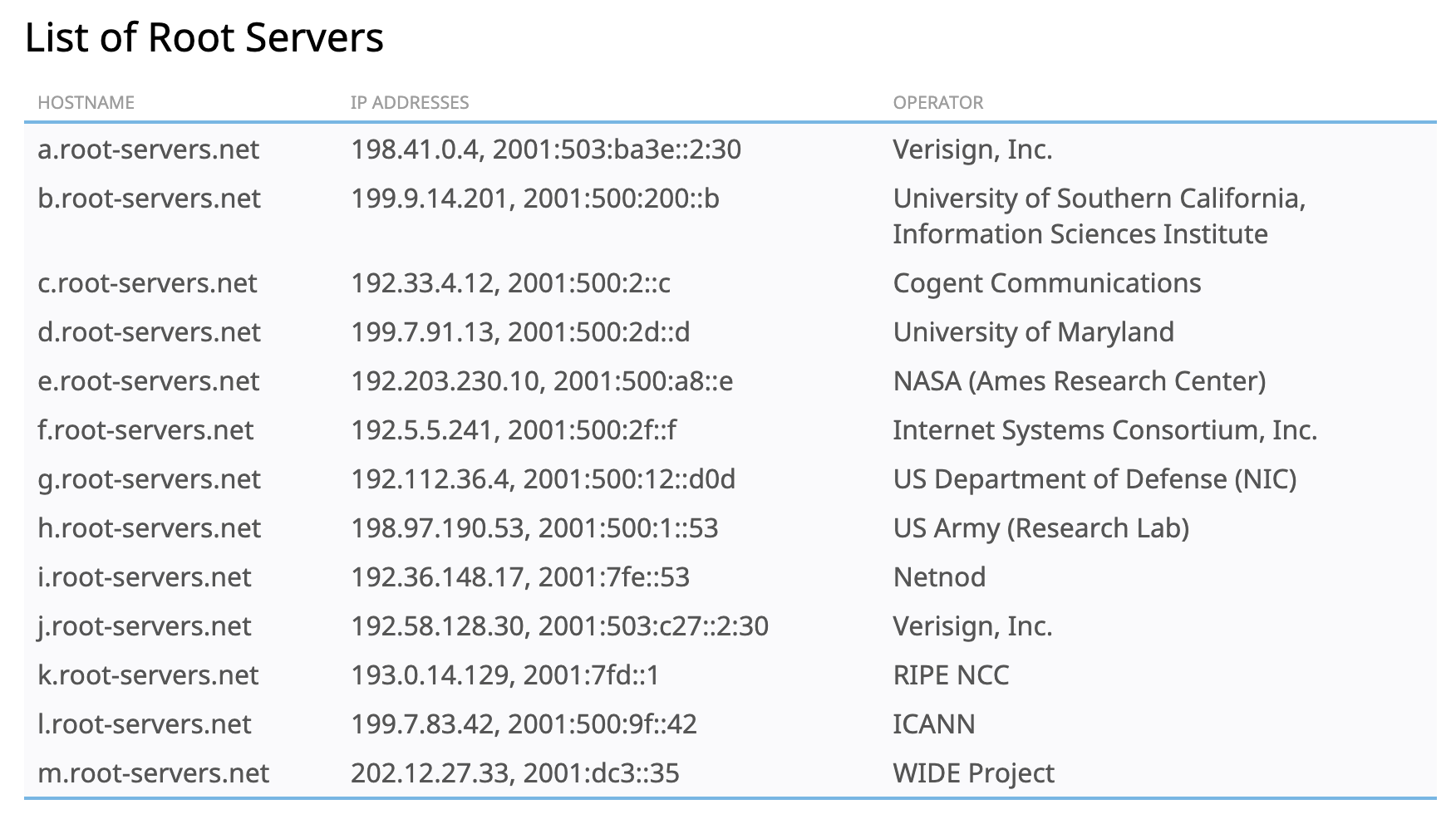

Root zones

• 13 root servers because 14th wouldn’t fit in a single DNS UDP packet
• They are “well known” and built into DNS resolvers and operating systems
• If one doesn’t respond, it will try another -> 12/13 can go down and internet would still work
• Each runs on Anycast network - this allows multiple servers to listen on the same IP address

Zone delegation

dig linkedin-queens-game-solver.adriangohjw.com +trace +nodnssec

; <<>> DiG 9.10.6 <<>> linkedin-queens-game-solver.adriangohjw.com +trace +nodnssec
;; global options: +cmd
.                       512043  IN      NS      b.root-servers.net.
.                       512043  IN      NS      c.root-servers.net.
.                       512043  IN      NS      d.root-servers.net.
.                       512043  IN      NS      e.root-servers.net.
.                       512043  IN      NS      f.root-servers.net.
.                       512043  IN      NS      g.root-servers.net.
.                       512043  IN      NS      h.root-servers.net.
.                       512043  IN      NS      i.root-servers.net.
.                       512043  IN      NS      j.root-servers.net.
.                       512043  IN      NS      k.root-servers.net.
.                       512043  IN      NS      l.root-servers.net.
.                       512043  IN      NS      m.root-servers.net.
.                       512043  IN      NS      a.root-servers.net.
;; Received 811 bytes from 103.7.200.10#53(103.7.200.10) in 4 ms

com.                    172800  IN      NS      g.gtld-servers.net.
com.                    172800  IN      NS      j.gtld-servers.net.
com.                    172800  IN      NS      l.gtld-servers.net.
com.                    172800  IN      NS      b.gtld-servers.net.
com.                    172800  IN      NS      d.gtld-servers.net.
com.                    172800  IN      NS      e.gtld-servers.net.
com.                    172800  IN      NS      k.gtld-servers.net.
com.                    172800  IN      NS      f.gtld-servers.net.
com.                    172800  IN      NS      h.gtld-servers.net.
com.                    172800  IN      NS      i.gtld-servers.net.
com.                    172800  IN      NS      m.gtld-servers.net.
com.                    172800  IN      NS      c.gtld-servers.net.
com.                    172800  IN      NS      a.gtld-servers.net.
;; Received 871 bytes from 192.36.148.17#53(i.root-servers.net) in 15 ms

adriangohjw.com.        172800  IN      NS      kara.ns.cloudflare.com.
adriangohjw.com.        172800  IN      NS      carlos.ns.cloudflare.com.
;; Received 390 bytes from 192.55.83.30#53(m.gtld-servers.net) in 69 ms

linkedin-queens-game-solver.adriangohjw.com. 300 IN A 104.21.64.1
linkedin-queens-game-solver.adriangohjw.com. 300 IN A 104.21.48.1
linkedin-queens-game-solver.adriangohjw.com. 300 IN A 104.21.80.1
linkedin-queens-game-solver.adriangohjw.com. 300 IN A 104.21.16.1
linkedin-queens-game-solver.adriangohjw.com. 300 IN A 104.21.96.1
linkedin-queens-game-solver.adriangohjw.com. 300 IN A 104.21.112.1
linkedin-queens-game-solver.adriangohjw.com. 300 IN A 104.21.32.1
;; Received 184 bytes from 108.162.192.123#53(kara.ns.cloudflare.com) in 5 ms

1. First, we get a list of all 13 root DNS servers.
2. Our resolver picks one root server (i.root-servers.net) to query for the .com TLD nameservers
3. From the .com TLD nameservers received, it queries m.gtld-servers.net to find nameservers for adriangohjw.com. The query returns Cloudflare’s nameservers (kara.ns.cloudflare.com and carlos.ns.cloudflare.com)
4. Finally, querying kara.ns.cloudflare.com gives us seven A records (IP addresses) for linkedin-queens-game-solver.adriangohjw.com
5. The resolver picks one of the IP addresses and uses it to connect to the server.

Authorative DNS servers

• Every DNS zone must have at least 2 name servers to serve its DNS records.
• They are “authoritative NS” because they are the only servers trusted to reply with the correct DNS records for that zone.

dig adriangohjw.com NS +short

carlos.ns.cloudflare.com.
kara.ns.cloudflare.com.

Zone transfers

• Designed with a leader/follower model (primary/secondary)
• All servers should reply with the same DNS data. It’s kept in sync through a process called zone transfers.
• FYI: Many DNS providers do not actually use zone transfer but their own proprietary database replication mechanism.

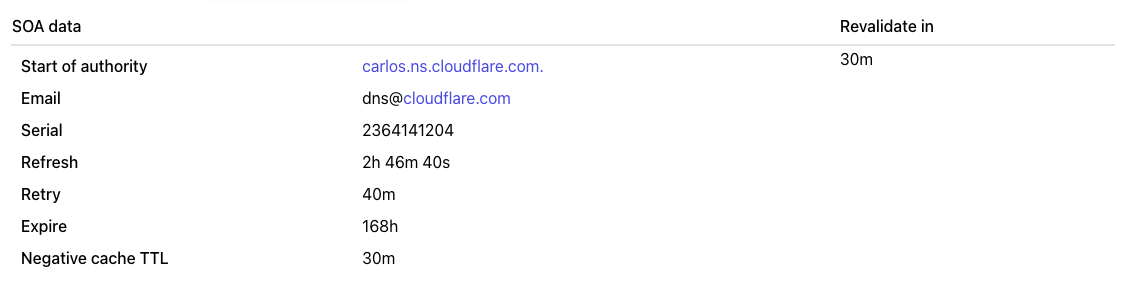

dig adriangohjw.com SOA +short

adriangohjw.com.        1772    IN      SOA     carlos.ns.cloudflare.com. dns.cloudflare.com. 2364141204 10000 2400 604800 1800

Field	Description
Name	Where the primary NS is hosted
Email	Email address of the administrator of the zone
Serial	The serial number of the zone. It’s like a version number to see if the follower already has the most recent data.
Refresh	How often the secondary server should ask for updates
Retry	How often the secondary server should retry if the transfer fails
Expire	How long the secondary server should keep the zone in its cache

AXFR (Asynchronous Transfer Full Range)

• Used to transfer the entire zone from the primary to the secondary server.
• Response contains all DNS records for a domain, including internal hosts, subdomains, mail servers, and sometimes even private infrastructure.
• Example dig adriangohjw.com AXFR

IXFR (Incremental Zone Transfer)

• Response contains only the changes to the zone, not the entire zone.
• Example dig adriangohjw.com IXFR=2364141203 will return only the changes to the zone since the serial number 2364141203.

Why are zone transfers not enabled by default?

Many DNS servers disable AXFR by default for security reasons:

1. Exposed internal network topology - Attackers can identify internal services that should not be exposed to the public internet
2. Facilitate phising attack - E.g. if they find vpn.example.com, they might create vpn-secure.example.com and phish users to input their credentials.
3. DoS via large zone transfers - high bandwidth usage

Recursive v.s. Iterative queries

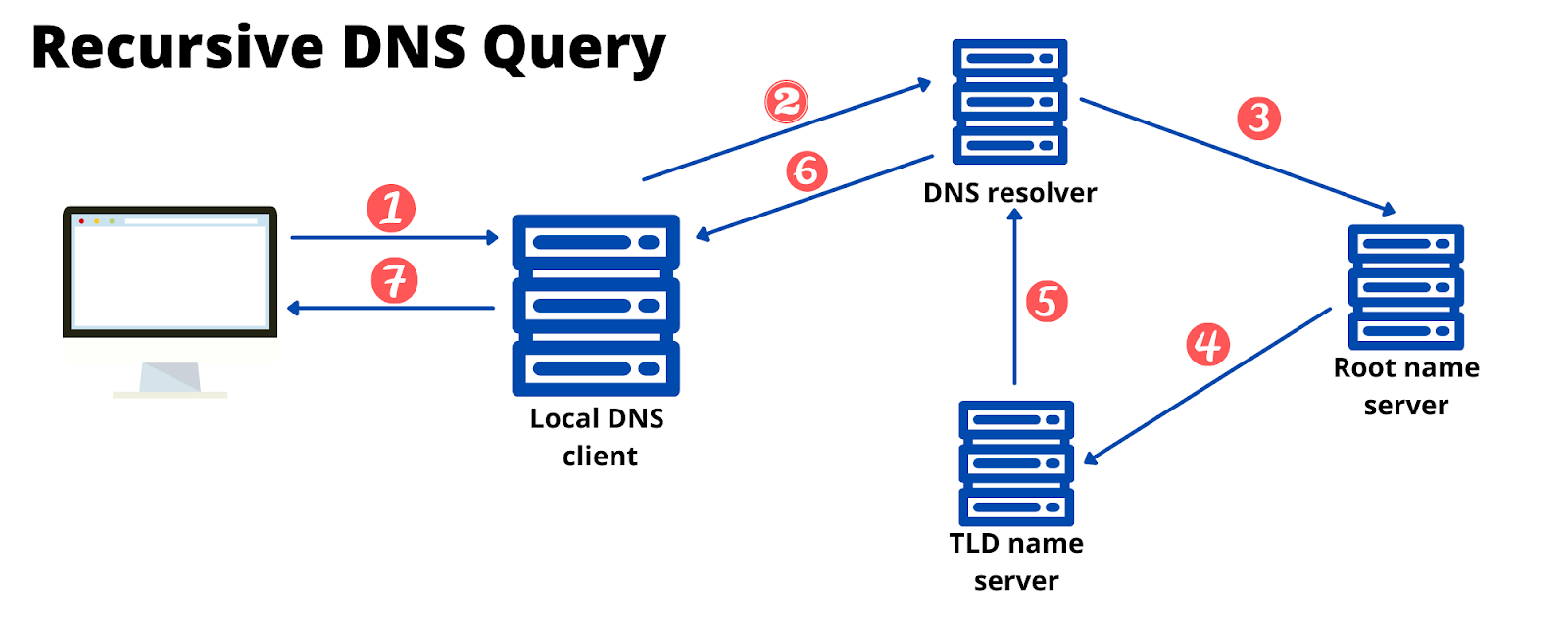

Recursive Query

• DNS client requests that the DNS resolver fully resolves the domain name.
• Mainly used by end-users’ devices as it obtain complete answers with minimal effort (does not require multiple queries)

Image source: threat.media

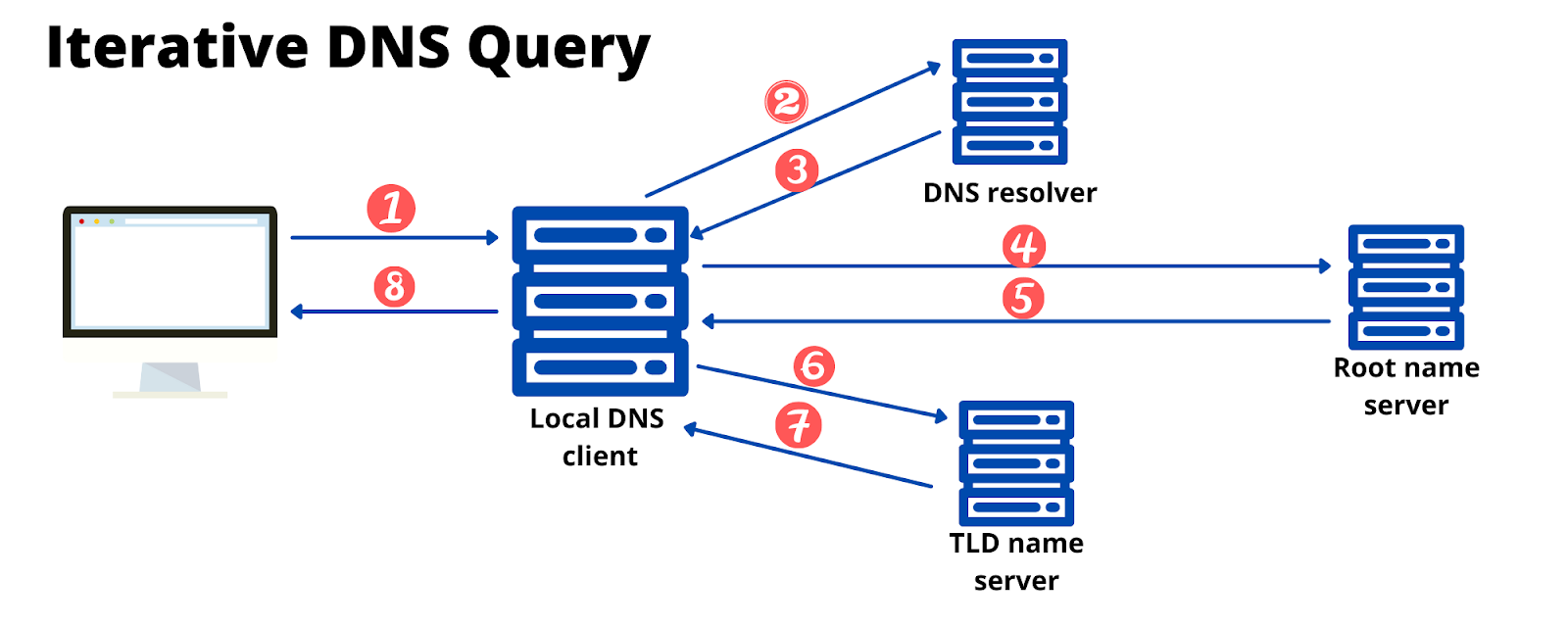

Iterative Query

• DNS client queries the DNS servers sequentially.
• Mainly used by DNS resolvers to methodically resolve domain names by consulting multiple servers.

Image source: threat.media

Glue records

• Why: help resolve domain names when the NS is within the same domain.
• For example, if example.com uses ns1.example.com as its name servers.
• Without glue records, the resolver will not be able to resolve ns1.example.com to its IP address as it’s stuck in a loop.
• To add glue records, the registrar includes glue records (A/AAAA) at the parent DNS levels.
• If you see A/AAAA records in the “additional” section, those are the glue records.

dig google.com NS

; <<>> DiG 9.10.6 <<>> google.com NS +additional
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 45537
;; flags: qr rd ra; QUERY: 1, ANSWER: 4, AUTHORITY: 0, ADDITIONAL: 9

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 512
;; QUESTION SECTION:
;google.com.                    IN      NS

;; ANSWER SECTION:
google.com.             247628  IN      NS      ns3.google.com.
google.com.             247628  IN      NS      ns1.google.com.
google.com.             247628  IN      NS      ns4.google.com.
google.com.             247628  IN      NS      ns2.google.com.

;; ADDITIONAL SECTION:
ns1.google.com.         247630  IN      A       216.239.32.10
ns1.google.com.         247633  IN      AAAA    2001:4860:4802:32::a
ns4.google.com.         247631  IN      A       216.239.38.10
ns4.google.com.         247634  IN      AAAA    2001:4860:4802:38::a
ns2.google.com.         247629  IN      A       216.239.34.10
ns2.google.com.         247630  IN      AAAA    2001:4860:4802:34::a
ns3.google.com.         247632  IN      A       216.239.36.10
ns3.google.com.         247628  IN      AAAA    2001:4860:4802:36::a

DNS Caching

Pros

1. Faster - Speed up future website access without needing to query the DNS server again.
2. Less load on the DNS server - Less DNS requests to the server.

Cons

1. Outdated DNS records - If TTL is 1 hour, it means it might take up to 1 hour to update the DNS records locally.
2. DNS poisoning - Inserting malicious DNS records into the cache and redirecting users to malicious websites.

Negative caching

• DNS server will cache the failed DNS request and return the cached result.
• Duration for which a negative response is cached: Lesser of 2 values in the SOA record (TTL + minimum TTL a.k.a negative TTL)

EDNS (Extension Mechanisms for DNS)

• Enhances DNS capabilities by supporting larger message sizes and more features e.g. DNSSEC.
• FYI: Default in most modern DNS resolvers

Pros (key features)

1. Larger UDP packets - 4096 bytes (default 512 bytes) - avoid TCP fallback, making DNS faster
2. DNSSEC - Make DNS more secure (cryptographic validation for DNS responses)
3. Client subnet (ECS) - Sends part of the user’s IP to to help CDNs serve geo-optimized content
4. Extensible - Allows for new features to be added without breaking backward compatibility

Cons

1. Firewall issues - Some firewalls block EDNS packets
2. Increased attack surface - Can be abused for DNS amplification attacks*

* Attacker can send multiple DNS requests to a server while spoofing the victim’s IP address. The server, thinking these requests are legitimate, responds to the victim’s IP. This overwhelms the victim’s network with a flood of unsolicited responses, resulting in a DoS attack. Mitigation strategies include rate limiting, traffic filtering and network firewalls (block known malicious IPs).

Dynamic DNS responses

Round-robin DNS

• Load balancing technique to distribute traffic evenly across multiple servers.
• Pros: Simple and easy
• Cons: Can actually be unequal distribution + Ignores server load
• E.g.
  • 1st request -> server 1
  • 2nd request -> server 2
  • 3rd request -> server 1
  • 4th request -> server 2
  • etc.

Weighted round-robin DNS

• Similar to round-robin, but each server has a weight.
• Pros: More efficient resource utilization + Considers server load
• Cons: Static weights + More complex to implement
• E.g. server 1 has a weight of 1, server 2 has a weight of 2. Then
  • 1st request -> server 1
  • 2nd request -> server 1
  • 3rd request -> server 2
  • 4th request -> server 1
  • etc.

Dynamic load balancing

• Actively monitors server load and adjusts the distribution accordingly.
• Pros: Real-time traffic management + More reliable
• Cons: More complex to implement + Requires more resources to monitor server load

Split-horizon DNS

• Pros: More secure + customized access
• Cons: Compled to manage + Potential for misconfigurations
• Example: Making an internal website accessible only within the office network.

Types of DNS records

Type	Description	Example
A	Maps a domain name to an IPv4 address	192.0.2.1
AAAA	Maps a domain name to an IPv6 address	2001:db8:1:1:1:1:1:1
CNAME	Maps a domain name to another domain name	www.example.com.cdn.net
TXT	Stores arbitrary text data	v=spf1 +all

A & AAAA

• If both A & AAAA present, a client can connect to either as DNS cannot dictate which one to use.

CNAME

• No other records with the same name can exist.
• Building on the pointer above, only one CNAME record per domain (or subdomain) too.
• No CNAME allowed for NS and MX records
  • e.g. mail.domain.com MX record pointing to mailserver.domain.com cannot have a CNAME of mailserver.domain.com

Common pitfall	Description
Having a loop	e.g. www.domain.com CNAME to mail.domain.com and CNAME back to www.domain.com
Pointing to a IP address	Because the IP e.g. 1.2.3.4 will be interpreted as a subdomain, not a IP address.
Setting a URL	e.g. www.domain.com CNAME to https://domain.com/about

TXT

• Mainly used to protect against spam and phishing
  • e.g. SPF, DKIM, DMARC, Domain Verification.
• Value cannot only contain 255 characters.

SRV

• Specify the location of servers for specific services, including hostnames and ports.

dig _sip._tcp.example.com SRV

_sip._tcp.example.com. 86400 IN SRV 10 5 5060 sipserver.example.com.

Field	Description	Example
Priority	Lower value = higher priority	10
Weight	Used to distribute traffic	5
Port	Port number	5060
Target	Hostname of the server	sipserver.example.com

• By configuring multiple SRV records with different priorities and weights, you can load balance your SIP (Session Initiation Protocol) servers.

PTR

• Reverse DNS lookup
• Maps an IP address to a domain name.

Types of DNS records (Emails)

Type	Description
MX	Maps a domain name to be the recipient of emails
SPF	Specifies who can send emails for a domain
DKIM	Allows senders to sign their emails (stronger proof than SPF)
DMARC	Specifies how strict the receiving email server should be about accepting emails

MX

• Maps a domain name to be the recipient of emails.
• The receiving email server will use the MX record to determine where to send the email.

dig adriangohjw.com MX

adriangohjw.com.        1772    IN      MX      10 mail.adriangohjw.com.
adriangohjw.com.        1772    IN      MX      20 mail2.adriangohjw.com.

Field	Description
Priority	Lower value = higher priority	10
Target	Hostname of the mail server	mail.adriangohjw.com

• MX value cannot be a CNAME
• MX value cannot be an IP address

TLSA (TLS Authentication)

• A user visiting a website checks the TLS certificate issued by a Certificate Authority (CA). But if an attacker is able to intercept the TLS handshake, they can issue a fake certificate.

DANE

• DANE (DNS-Based Authentication of Named Entities) is a protocol that allows website owners to publish their own certificate information in DNS, ensuring only the correct certificate is trusted. It store information such as:
  • Type of certificate (e.g. full certificate, public key, CA)
  • A fingerprint hash of the certificate
  • The certificate usage policy
• DANE requires DNSSEC to prevent man-in-the-middle DNS records tampering.

dig _443._tcp.example.com TLSA

_443._tcp.example.com. IN TLSA 3 1 1 2B5B3D6C...

Field	Description
Usage	3 = certificate usage policy
Selector	1 = selector
Matching Type	1 = matching type
Certificate	2B5B3D6C… = certificate hash

This means:

• When a browser connects to example.com using port 443 (https), it checks the DNS for a TLSA record
• It verfieies that the server’s public key matches the stored hash
• Rejects the connection if it doesn’t match

Image source: CSA

DANE Usage Scenarios

1. Preventing Rogue CAs - If a CA is compromised, browsers will reject the certificate because it doesn’t match the TLSA record.
2. Self-signed certificates - You can published hash of your self-signed certificate in DNS
3. SMTP Security - Email servers using DANE for SMTP can verify TLS certificates via DNS.

MTA-STS (Mail Transfer Agent Strict Transport Security)

• Enhances the security of email transmission between mail servers
• Note: it encrypts the transmission path, not the email content
• Done by enforcing the use of TLS encryption

Step 1: MTA-STS DNS TXT Record

dig _mta-sts.google.com TXT

_mta-sts.google.com.    900     IN      TXT     "v=STSv1; id=20210803T010101;"

Field	Description
v	Version of the MTA-STS policy (STSv1)
id	Can be any string, but timestamp is common practice

Step 2: MTA-STS Policy File

• Should be hosted on a web server accessible via HTTPS
• e.g. https://mta-sts.google.com/.well-known/mta-sts.txt

version: STSv1
mode: enforce
mx: smtp.google.com
mx: aspmx.l.google.com
mx: *.aspmx.l.google.com
max_age: 86400

Field	Description
version	Version of the MTA-STS policy (STSv1)
mode	enforce / testing / none
mx	Mail server to use (min. 1 required)
max_age	How long the policy is valid (86400 seconds = 1 day)
